RESI-UI-2SW2L-GN
RESI-UI-2SW2L-GN
New product

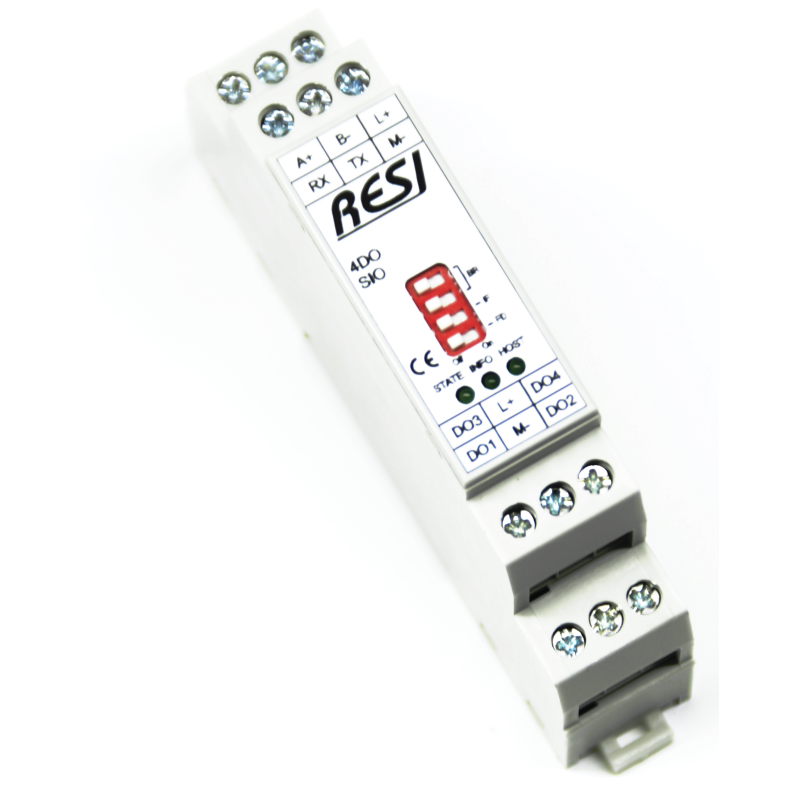

Signal and control module compatible to DIN ISO 16484 and VDI 3814 with 2 switches with three positions LEFT-CENTER-RIGHT and 2 24Vdc LEDs in GREEN
| Interface #1 | 2xSWITCH+2xLED |
| Interface #2 | POWER SUPPLY:4x0..60Vdc |
| Protocol | SIGNAL |
More info
Manual control and monitor module with 2 build-in switches and 2 LEDs (24Vdc, max. 20mA) in GREEN. Each switch offers three positions: LEFT-CENTER-RIGHT. A 18 pin removable terminal block for wiring of all switches and LEDs. Contact rating of the switches with resistive load: max. 2A@250Vac, max. 5A@120Vac, max. 5A@28Vdc. 4 internally bridged 2 pin terminal blocks to distribute the power supply (max. 60Vdc, max. 4A). Module suitable to build up a DIN ISO 16484 and VDI 3814 compatible manual operator interface, Weight: 160g, Dimension (LxWxH): 72x110x62mm, Snap able onto a EN50022 DIN rail or wall mounting.
help and more information about this product under RESI-WIKI
Download
RESI-M-UI-BR-MODULES-D10.pdf
Manual for our RESI-UI-xxx and RESI-BR-xxx products in German
Download (3.95M)RESI-M-UI-BR-MODULES-E10.pdf
Manual for our RESI-UI-xxx and RESI-BR-xxx products in English
Download (4.12M)RESI-DS-UI-2SW2L-xx-D10.pdf
Data sheet for our RESI-UI-2SW2L-xxx products in German
Download (200.48k)RESI-DS-UI-2SW2L-xx-E10.pdf
Data sheet for our RESI-UI-2SW2L-xxx products in English
Download (199.09k)RESI-PA-UI-2SW2L-GN-DE10.pdf
Product attachment for our RESI-UI-2SW2L-GN product in German/English
